Trane Heat Pump Repair in West Covina
The straight version: West Covina Trane HVAC diagnoses and repairs Trane heat pumps across West Covina, CA - 4TWV0 variable-speed and XR single-stage units in Vincent, Galaxie and South Hills within 91790 through 91793 - covering reversing valve, defrost board, capacitor and compressor faults, so call (213) 444-4051 or book online for an out-of-warranty diagnosis.
Plain facts
- Heat pump lines serviced: 4TWV0 variable-speed (XV20i), 4TWV8 (XV18), XR-series single-stage (4TWR).
- Heating-side parts: reversing valve, defrost control board, defrost thermostat, auxiliary heat strips.
- Cooling-side parts: dual-run capacitor, contactor, Climatuff compressor, condenser fan motor.
- Capacitor / contactor repair $150 to $450; refrigerant leak repair $225 to $1,500.
- Communicating faults read on the ComfortLink II XL824 / XL850 control in plain language.
- Service area: West Covina (91790-91793) - South Hills, Galaxie, Woodside Village, Vincent.
- Independent; in-warranty units referred to authorized service first.
- Diagnostic $79 to $200, credited toward repair.
What are the most common Trane heat pump faults here?
In West Covina the heat pump fails like an AC most of the year - because most of the year it is an AC. The summer killers are the dual-run capacitor and the contactor under Zone 9 load, then refrigerant leaks at the Spine Fin coil or the flare and brazed joints. The heating-specific failures show up on the rare cold morning: a reversing valve that will not shift to heat, or a defrost control board and sensor that let the outdoor coil ice over. We meter the valve solenoid, check the defrost thermostat resistance, and verify the O/B reversing signal from the thermostat before touching refrigerant.
| Symptom | Likely cause / first check | Component | Cost lane |
|---|---|---|---|
| Hums, fan dead, no cool | Microfarad test against nameplate | Dual-run capacitor or contactor | $150 - $450 |
| Runs but blows cool in heat mode | Meter solenoid, verify O/B signal | Reversing valve or defrost board | $350 - $1,500 |
| Outdoor coil iced in winter | Defrost board timing, sensor resistance | Defrost thermostat / control board | $250 - $700 |
| "Loss of communication" on XL850 | 4-wire run and line voltage check | ComfortLink wire or comm board | $200 - $2,000 |
| Weak heat and cool, ice on indoor coil | Pressure, superheat and subcool | Low refrigerant / leak | $225 - $1,500 |
| No cool, compressor will not start | Confirm cap/contactor good, megohm test | Failed Climatuff compressor | $1,200 - $3,500 |
How does a Trane heat pump diagnosis actually go?
A West Covina heat pump diagnosis moves step by step, from the cheapest likely fault toward the costliest, so the charge on your invoice matches the part that actually failed instead of a hunch. We start at the thermostat and low-voltage signals - confirming the call, the O/B reversing output and 24V common - then move outside to the electricals: a microfarad test on the dual-run capacitor against the nameplate, a check of the contactor contacts for pitting, and condenser fan-motor amperage. If the electricals pass, we put gauges on and read suction and liquid pressures, superheat and subcool, which separate a refrigerant leak from a metering or airflow problem.

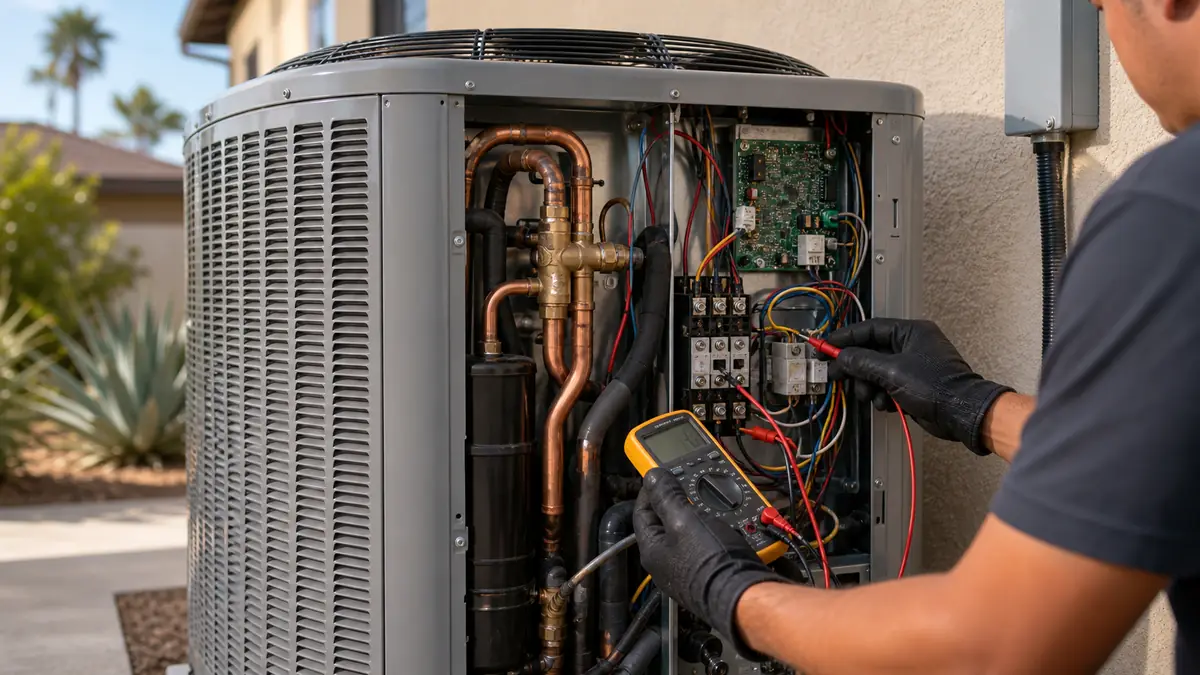

For the heating side we energize the reversing valve solenoid and listen and meter for the shift, then check the defrost board's cycle timing and the defrost thermostat's resistance. On a communicating XV20i or XV18 we read the XL850 or XL824 ComfortLink alert first - "loss of communication with outdoor unit" sends us to the 4-wire run and line voltage before any board. The Climatuff compressor is the dearest component out there, so it is condemned only when it actually fails a megohm and amp-draw test - never on suspicion. The tools that carry this diagnosis are a clamp meter for the amperage, a manifold set for the pressures, a micron gauge for any circuit we open, and a thermometer for the superheat read.
Why does a stuck reversing valve happen?
The reversing valve is what lets a heat pump run backward to make heat, so when it sticks the system blows cool air on a heat call. Its pilot solenoid can lose power, the valve body can stick from infrequent winter cycling in mild Zone 9, or the thermostat can fail to send the O/B signal. The fix ranges from a roughly $350 solenoid-coil call to a brazed-in valve-body replacement on the sealed refrigerant circuit, which means recovery, replacement, evacuation and recharge. We confirm the failure mode with gauges and a meter so you are not paying for a valve when the real issue is a $30 control wire or a thermostat set wrong.
What does heat pump repair cost in West Covina and why?
Heat pump repair in West Covina runs from about $150 for a capacitor to $3,500 for an out-of-warranty compressor, and the part dictates the lane. The cheap, common repairs are electrical - capacitor and contactor - mostly trip and labor since the parts are inexpensive. Mid-range repairs are the heating-side controls (defrost board, defrost thermostat) and refrigerant leak search-and-recharge, where R-410A runs roughly $50 to $80 per pound installed and the leak location drives the labor. The expensive end is the sealed-system work: a reversing valve replacement or a Climatuff compressor, both requiring recovery and recharge. If your unit is still under Trane's compressor or parts warranty, we route you to authorized service first so you pay labor only.
Should I keep repairing or convert to a new heat pump?
Electrical and minor refrigerant repairs on a sub-10-year unit are easy yes-repairs in West Covina. A failed Climatuff compressor or a coil leak on a 13-plus-year-old 4TWR tips toward replacement - and a new variable-speed heat pump install can pull LADWP or SCE rebates (verify current amounts and phase status). Run the math on the Trane buying guide, and if the symptom is really just weak airflow or a frozen coil, the repair is often small and the unit has years left.
Common questions
My Trane heat pump runs but only blows cool air on a cold morning. Why?
Most often a stuck reversing valve or a failed defrost control board, sometimes a bad O/B signal from the thermostat. We put a meter on the valve solenoid and the defrost sensor first and only call a part bad once the reading proves it; a reversing valve is a sealed refrigerant-circuit repair, not a quick swap.
Does a heat pump fail differently from a straight AC in West Covina?
Same cooling-side failures - capacitor, contactor, leaks - plus a heating side: reversing valve, defrost cycle and auxiliary heat. In mild Zone 9 the defrost components see light duty, so the cooling-mode parts still fail first under summer load.
Is my heat pump worth repairing or should I replace it?
If it is under 10 years and the fault is electrical or a leak, repair. A failed compressor on a 13-plus-year-old 4TWR is usually a replacement conversation, especially with LADWP and SCE rebates available on a new variable-speed system.
Can you fix a communicating XV heat pump that lost its outdoor unit?
Yes. A 'loss of communication with outdoor unit' alert on an XL850 points at the 4-wire ComfortLink run, low line voltage, or a failed communicating board. We confirm which of the three it is on the meter, rather than gamble on a board that may turn out to be perfectly good.
Why does my heat pump's outdoor coil ice up in winter?
Light frost in heat mode is normal; a thick ice sheet that never clears means the defrost cycle is not firing. The usual cause is a failed defrost control board or a defrost thermostat reading wrong, a $250 to $700 repair. We confirm the board is timing and the sensor is in spec before replacing parts.
How much does a Trane reversing valve replacement cost?
A stuck reversing valve runs roughly $350 to $1,500. If only the pilot solenoid coil failed it is near the low end; a brazed-in valve-body replacement on the sealed circuit, with recovery and recharge, sits at the high end. We prove the failure on gauges first so you never pay valve money for a $30 control wire.
