Weak Airflow From Trane Vents in West Covina
The straight version: Weak airflow from Trane vents in West Covina, CA usually traces to leaky tract ducts, a clogged filter, a failing ECM blower, or an iced coil - so call West Covina Trane HVAC at (213) 444-4051 or book online to pin down which across Galaxie, Merlinda and Vincent (91792). We are independent.
Plain facts
- Top causes: leaky / undersized attic ducts, clogged filter, failing ECM blower, frozen coil, closed dampers.
- One weak room usually means a disconnected or crushed duct branch, not the AC.
- 1960s Galaxie and Vincent ducts often leak 20-30 percent into the attic.
- A dirty filter is the most common single restriction - check it first, free.
- ECM blower module / motor replacement $450 to $2,300.
- Duct sealing or branch repair $300 to $3,100 by scope.
- Service area: West Covina (91790-91793). Independent; diagnostic $79 to $200, credited.
What causes weak airflow in a West Covina home?
Airflow is a chain from blower to register, and any weak link starves the vents. In West Covina the most common cause is the duct system itself: the 1960s Galaxie and Vincent tracts run undersized, leaky attic ducts that dump 20 to 30 percent of the air into a 130 F attic before it reaches the room. Next is the filter - a clogged one chokes the whole system. Then the indoor blower: a failing ECM module surges or stops. And a low charge or dirty coil that ices the coil blocks airflow entirely.
| Symptom pattern | Likely cause / first check | Cost lane |
|---|---|---|
| One room weak, rest fine | Disconnected / crushed duct branch | $300 - $1,500 |
| Whole house weak, high bill | 20-30% duct leakage; seal joints | $800 - $3,100 |
| Weak after months without a filter change | Clogged filter / dirty coil | $150 - $500 |
| Surging or no air, clean filter | Failing ECM blower motor / module | $450 - $2,300 |
| Weak air with ice on coil | Low refrigerant or restricted airflow | $225 - $1,500 |
Why does it always seem to be the back bedroom?
Because the longest, smallest duct runs feed the far rooms, and those are exactly the branches that sag, disconnect, or were undersized when the Galaxie tract was built. No condenser upgrade fixes a duct that bleeds before it reaches the room - the fix is duct repair and sealing, often with a HERS test. Static-pressure measurement tells us whether the trunk itself is undersized or just leaking.
How does a tech diagnose weak airflow step by step?

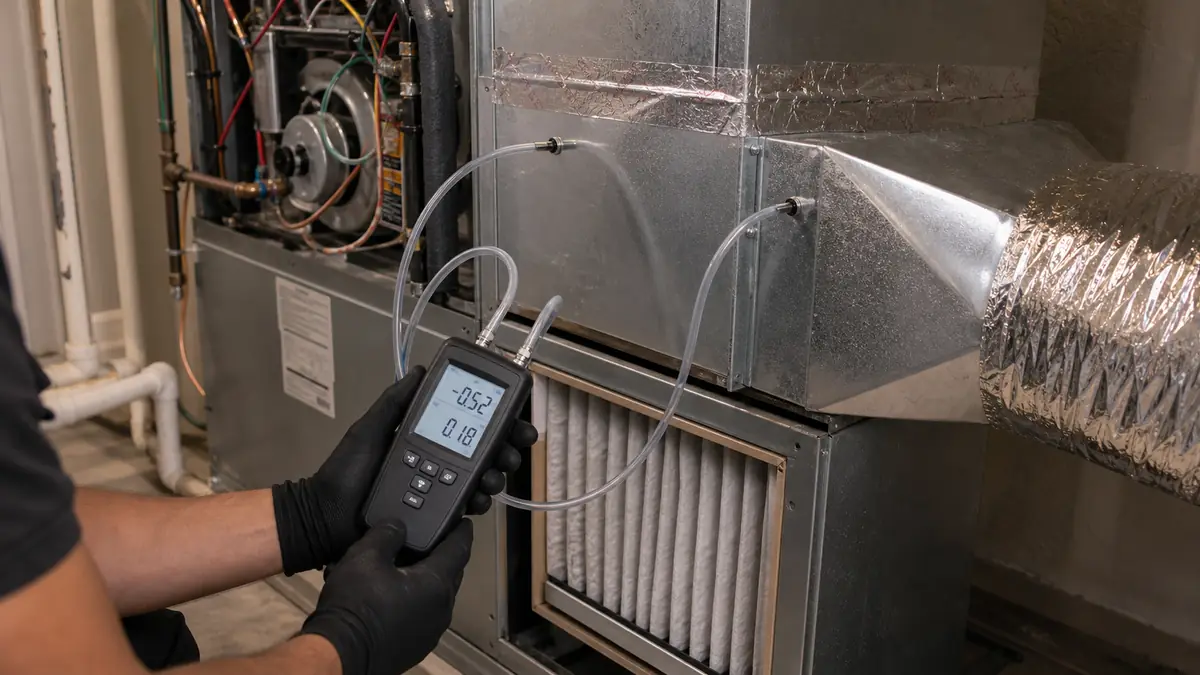

The order matters because the cheap causes are also the common ones. First the filter and returns - a clogged 1-inch pleated filter is the single most frequent restriction we find, and clearing it is free. Then we measure: a manometer reads total external static pressure across the air handler, which tells us instantly whether the system is fighting a restriction or the ducts are simply undersized. An anemometer at the registers quantifies which rooms are starved. Next the blower itself - on a variable-speed ECM, the furnace LED can show a normal heat or cool call while the motor will not spin, so we diagnose the ECM module and motor directly rather than trusting the board. Then the ducts: we look for disconnected or crushed branches in the attic and measure leakage, since 1960s Galaxie and Vincent runs commonly bleed 20 to 30 percent into a 130 F attic. Finally we rule out a low charge or dirty coil that has iced over and blocked airflow entirely.
There is rarely a numeric fault code for weak airflow on a Trane central system - it is a measured diagnosis with a manometer and anemometer. The exception is the furnace 4-flash high-limit trip, which a severe airflow restriction can throw on the heating side.
What can I check before calling, and what needs a pro?
Homeowner-safe: replace the filter, open and unblock every return grille and supply register, confirm no dampers are shut, and verify the blower is actually running. That clears the easy half of weak-airflow calls. What needs a pro: a static-pressure measurement, an ECM blower diagnosis (the module and motor need meter testing, and the wrong voltage can destroy a good module), duct leakage testing, and any refrigerant or coil work. The dividing line is measurement - if it is still weak everywhere with a clean filter and clear vents, it is a duct or blower problem that needs instruments, not guesswork. Catch it early: weak airflow rarely stands alone, commonly preceding a frozen coil and driving short cycling, so the early fix is the cheaper one.
Common questions
Why is one room in my West Covina house always weak while others are fine?
That points to the duct serving that room - a disconnected, crushed, or undersized branch in the attic. The 1960s Galaxie and Vincent tracts are full of these. It is a duct repair, not an AC problem, and a bigger condenser will not fix it.
Can a dirty filter really kill my airflow?
Yes, dramatically. A clogged filter is the number-one airflow restriction we find. It starves the blower, can ice the coil, and trips the furnace high-limit on heat. Changing it is the first thing to try before calling - it is free and fixes a real share of weak-airflow calls.
What is an ECM blower and how do I know it is failing?
The ECM is the variable-speed indoor blower motor and module. When it fails or runs intermittently you get weak, surging, or no airflow even with a clean filter and clear ducts. The furnace LED may show a normal call yet the blower will not run - we diagnose the ECM module directly.
Is weak airflow ever the start of a frozen coil?
Yes - they feed each other. Restricted airflow drops the coil below freezing, ice builds and blocks airflow further, so weak airflow becomes no airflow. Catching it at the weak-airflow stage usually means a cheaper fix than waiting for a solid block of ice.
